RSS Hybrid 2019 Guidelines

Car available here: RAC3 SIM STUDIO Safety Car: AC F1 Safety car (951 downloads)

FtF version (requires purchase of original to work): RSS 2019 FtF Version (583 downloads)

Skins:  RSS 2019 Skins (508 downloads)

1 Tyres

1.1 Ideal running pressures: 22 psi, all tyres/compounds.

1.2 Ideal running temperatures – within 10 degrees of:

  • 100 – C5 Ultrasofts
  • 107 – C4 Supersofts
  • 114 – C3 Softs
  • 121 – C2 Mediums
  • 128 – C1 Hards

2 DRS

ACRL DRS App (1224 downloads) The ACRL DRS app will be used to catch anyone who uses it when over a second behind the guy in front. The best way to use this app is simply to always wait for the BEEP & react quickly to the “angry” BEEPs you get when using DRS illegally. Make sure you have the correct drs.ini installed for each track.

3 ERS Guide

3.1 MGU-K Deployment Modes

Revamped completely so that mode 1 is lowest ERS usage, mode 5 is highest:-

  • 0. Charging – Only used to save charge before a qualifying hotlap.
  • 1. Economy – lowest ERS usage for high top speed tracks where you are on the throttle more.
  • 2. Low – suited to high speed tracks or to replenish MGU-K on lower speed tracks.
  • 3. Medium – Somewhere in the middle.
  • 4. Medium-High – Bridging the gap further.
  • 5. High – used on tracks with lots of corners and fewer long straights.
  • 6. Party Time – your quali mode (on all but the longest tracks) and equivalent to the Kunos “Hotlap” mode. Highest energy output from MGU-K, but quite tricky enrate.

Qualifying – use the highest mode that does not empty the lap allowance, On a lot of tracks this is “6 – Party Time”, but at Spa it will probably even be as low as mode 1 – Economy.

Race:-

  • Hi speed tracks – Economy mode will see you good on any high speed track, switch to other modes for short stints or use KERS to supplement power. Make sure you stay within the lap allowance.
  • Medium speed tracks – Use 3, 4, 5, it’s your choice now.
  • Low speed tracks – High if you can get away with it, otherwise modes 3, 4 should be OK.

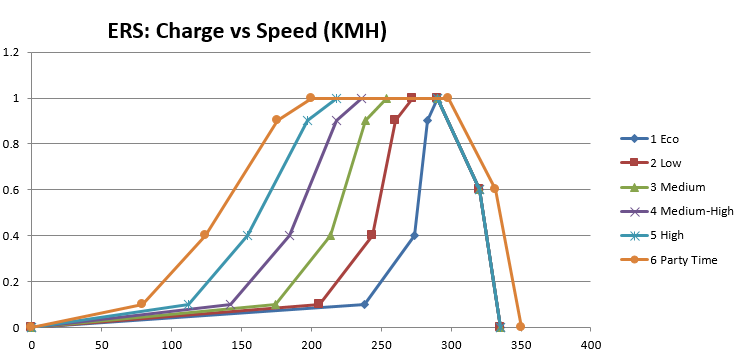

Note that none of the modes are compromised at high speed any more, the higher modes (4,5,6) just come into play more-and-more at lower speeds. See graph below.

3.2 MGU-K Recovery (Levels 0 – 10) Low levels give more stability under braking, but most people can cope in this car with the higher levels 8-10. You will need 10 at an “ERS thirsty” track like Silverstone.

3.3 Engine Braking (Levels 0 – 13) This is a matter of preference. High values give you better fuel consumption but make the rear less stable, low values are easier to manage but mean you are more likely to run through a corner as you release the brake pedal.

3.4 MGU-H Battery/Motor Mode Up to 25% of the ERS power comes from the turbo – this can either be stored (Battery mode) to be used later or deployed straight away. Only use Battery mode when you are running out of charge. The Kunos glitch where it doesn’t store charge properly has been fixed.

4. Changelog (FtF Version):-

  • Tyre change & repair times reduced so no-one gets stuck in the pits. Refuelling time increased so that it isn’t viable.
  • Fuel a bit denser to create a heavier feeling car on full tank.
  • Default ARB setup is a more manageable 80,000 – 10,000.
  • Pressures fixed at 15psi. Means you can’t exploit a weakness in the tyre footprint simulation and get soft tyres working on tracks they oughtn’t to.
  • DRS de-activates above 4G lateral force automatically.
  • ERS system – total revamp, see above.
  • Cosmetic setup default change to show the window visor (for videos/streaming).
  • Tyre wear increased to bring 2 (and even 3) stop strategy back into play. Blistering/graining more of a factor.

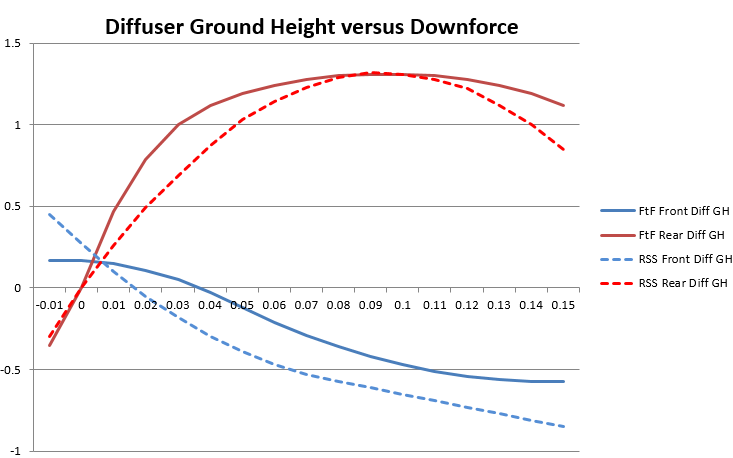

  • Aero-stability increased – the fluctuations in downforce as the car loads up and the back-end gets pushed down lower have been smoothed-out significantly.  See graph.
  • Rear drag curve altered slightly to bring “middle values” more into play, rather than running full aero everywhere.

2020 upgrades:-

  • Sharper turn-in, rear follows front more rather than hanging on then slithering out.
  • Tyre degs reduced a bit to bring 1-stop more into play.
